Our state of the art UV-C tech works diligently behind the scenes to keep your family healthy and safe
UV-CLEAN SYSTEMS
NABL LAB CERTIFIED
All products tested and certified by NABL accredited labs*
KEEPS FRUITS & VEGGIES FRESH
Scientifically proven to improve shelf life of fruits and vegetables
SAVES PRECIOUS WATER
UV-C approach to disinfection saves a significant amount of water
ECO-FRIENDLY & HAZARD FREE
No more chemicals. Good for you and good for the environment.
UV-C Disinfection Cabinets
UV-C Cabinets – Research-backed* preset timers for optimal usage and convenience.
The perfect choice for 360 degrees intelligent disinfection of your food items and personal belongings. Available in two convenient sizes, the cabinets also provide a host of features for speed, user-friendliness and maximum effectiveness.
99.99%
effectiveness in killing germs
AUTOMATIC SAFETY LOCK
The unit cuts off automatically when the door is opened for user safety
OPTIMIZED PRESET TIMERS
No need to second guess. Our presets provide thorough disinfection.
|
PRODUCT SPECIFICATIONS
|
25 LITRES UV-C CABINET
|
35 LITRES UV-C CABINET
|
|---|---|---|
|
MATERIAL
|
Metal
|
Metal
|
|
REFLECTIVE MATERIAL
|
SS/AI
|
SS/AI
|
|
DOOR MATERIAL
|
Toughened Glass
|
Toughened Glass
|
|
WEIGHT
|
10 kg
|
12 kg
|
|
COLOUR
|
White
|
White
|
|
OUTER DIMENSIONS
|
550x360x290 mm
|
550x360x360 mm
|
|
INNER DIMENSIONS
|
360x350x210 mm
|
360x350x290 mm
|
|
GERMICIDAL LAMPS
|
1
|
2
|
|
UV-C DOSAGE LEVEL
|
(0.6mw / cm2) x Sec
|
(0.8mw / cm2) x Sec
|
|
OPERATING VOLTAGE
|
220-240 VAC
|
220-240 VAC
|
|
OPERATING POWER
|
15 Watts
|
25 Watts
|
|
BULB OUTPUT
|
254nm UV-C Light, 8W
|
254nm UV-C Light, 16W
|
Standard protection fuse fitted in the cabinet models for high voltage protection
Fits great in your suitcase
or your carry-on
UV-C Disinfection Pyramid Bag
Lightweight, portable device for disinfection on the go.
Travel isn’t always avoidable, but at least some of the stress can be.
Even in an increasingly WFH world, sometimes you still have to get up and go. Whether you’re a working professional, or making your way through college, the Pyramid is your personal bodyguard against infectious disease.
It’s affordable and easy to carry around, so don’t leave home without it.
|
PRODUCT SPECIFICATIONS
|
UV-C Pyramid Bag / Tent
|
|---|---|
|
MATERIAL
|
Rexine
|
|
REFLECTIVE MATERIAL
|
AI Coated Cloth
|
|
WEIGHT
|
1.6 kg
|
|
COLOUR
|
Black
|
|
OUTER DIMENSIONS
|
425x390x290 mm
|
|
INNER DIMENSIONS
|
375x350x250 mm
|
|
GERMICIDAL LAMPS
|
1
|
|
UV-C DOSAGE LEVEL
|
(0.6mw / cm2) x Sec
|
|
OPERATING VOLTAGE
|
220-240 VAC
|
|
OPERATING POWER
|
10 Watts
|
|
BULB OUTPUT
|
254nm UV-C Light, 8W
|
UV-C Disinfection Wand
Make germs disappear, just like magic.
Our wizardry, now at your disposal in a handy form factor.
The Chikitssa UV-C Wand offers the complete disinfection package in a form that allows for a thorough cleansing even in hard to reach places, or for very large objects.
|
PRODUCT SPECIFICATIONS
|
UV-C Wand (Handheld)
|
|---|---|
|
MATERIAL
|
Aluminium
|
|
WEIGHT
|
0.7 kg
|
|
COLOUR
|
White
|
|
OUTER DIMENSIONS
|
32 mm Dia x 540 mm(L)
|
|
INNER DIMENSIONS
|
26 mmDia x 540 mm(L)
|
|
GERMICIDAL LAMPS
|
1
|
|
PROTECTIVE QUARTZ SLEEVE
|
Present
|
|
UV-C DOSAGE LEVEL
|
(2.2mw / cm2) x Sec at 5cm Distance
|
|
OPERATING VOLTAGE
|
220-240 VAC
|
|
OPERATING POWER
|
10 Watts
|
|
BULB OUTPUT
|
254nm UV-C Light, 8W
|
Easy to hold
easy to reach

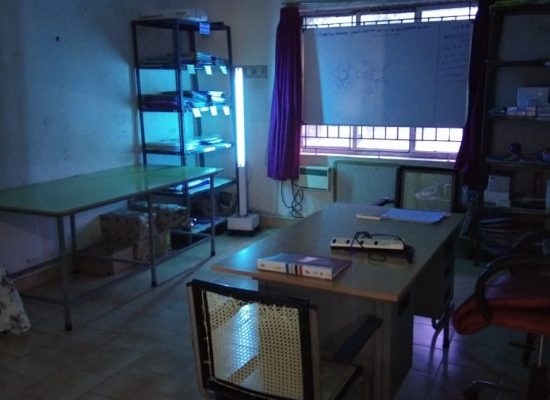

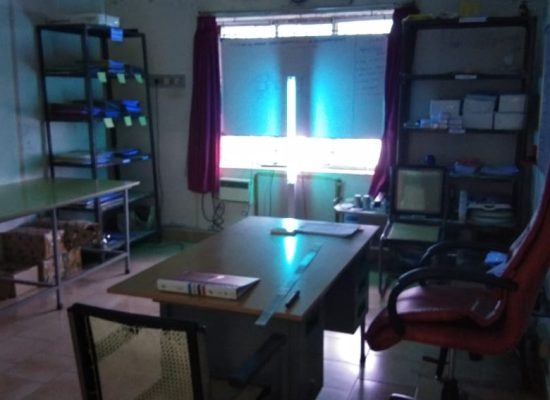

Chikitssa UV-C Room Disinfection/ Tower Models
UV-C Disinfection of Rooms (Small & Large)
These are Tower models which can disinfect the rooms various sizes & in different application such as clean rooms, operation theatres, Theatres etc . These Tower models are customized for different applications using remote control, Automatic Device etc. For various sizes of rooms.
|
Distance
(Meters) |
UV-C Irradiation
μw/cm2 |
UV-C Exposes
Time(s) |
UV-C Dosage
(μ J/cm2) |
|---|---|---|---|
|
0.1
|
1168
|
1800
|
2102400
|
|
0.3
|
648
|
1800
|
1166400
|
|
0.6
|
309
|
1800
|
556200
|
|
1
|
104.7
|
1800
|
188460
|
|
2
|
42.8
|
1800
|
77040
|
|
3
|
19.6
|
1800
|
35280
|
|
4
|
12.1
|
1800
|
21780
|
|
5
|
7.5
|
1800
|
13500
|
|
Specifications
|
Room Disinfection System / Tower Model
|
|---|---|
|
Material
|
Metal
|
|
Timer & ON / OFF Control
|
Remote/Mobile
|
|
Type
|
Stand along with wheel
|
|
Weight
|
15Kg
|
|
Color
|
White
|
|
Outer Dimensions
|
25x25x160cm
|
|
Sensor
|
Motion Sensor
|
|
Filters
|
-
|
|
Germicidal Lamps
|
1
|
|
Operating Voltage
|
220 - 240 VAC
|
|
Operating Power
|
75 Watts
|
|
Bulb Output
|
254nm UV-C Light, 55W
|
Kindly give your specification which will enable us to conceptualize design & manufacture, an equipment meeting your specifications & requirements.
The general information needed for are,
|
Specifications
|
Air Disinfection / Air Purifier System
|
|---|---|
|
Material
|
ABS/Fiber Plastic/FR-4
|
|
Timer & ON / OFF Control
|
Remote/Mobile
|
|
Type
|
Wall Mount / HVAC
|
|
Weight
|
4Kg
|
|
Color
|
White
|
|
Outer Dimensions
|
140x29.5x25cm
|
|
Filters
|
Pre Filter / HEPA Filter / Activated Carbon Filter
|
|
Germicidal Lamps
|
1
|
|
Operating Voltage
|
220 - 240 VAC
|
|
Operating Power
|
110 Watts
|
|
Bulb Output
|
254nm UV-C Light, 55W
|
|
S.No
|
Packages
|
|---|---|
|
1
|
UV Light Only
|
|
2
|
Pre-Filter with UV Light Only
|
|
3
|
Carbon Filter with UV Light Only
|
|
4
|
HEPA Filter with UV Light Only
|
|
5
|
Pre-filter + HEPA Filter with UV Light Only
|
|
6
|
Pre-filter + Carbon Filter with UV Light Only
|
|
7
|
HEPA Filter + Carbon Filter with UV Light Only
|
|
8
|
Pre-filter + HEPA Filter + Carbon Filter with UV Light Only
|
Chikitssa UV-C Air Disinfection System/ Air Purification System
Harmful airborne microorganisms, such as bacteria, viruses, fungi & now the latest Omicron float freely in the air and are highly prevalent in high traffic & populous areas such as schools, airports, offices and hospitals, etc.. They can cause severe health hazards to humans. In workplace environments they cause poor ‘indoor air quality’ (IAQ) and cause health issues known as ‘Sick Building Syndrome’. UV-C light (253.7nm short wave) should be used for air disinfection systems, our Chikitssa air disinfection system are inactivating 99.99% of all microorganisms present in the air and surfaces.
Chikitssa UV-C air disinfection systems expose the air to UV-C light using either natural or mechanical ventilation, inactivating airborne viruses, bacteria including SARS-CoV-2, Covid, & now the latest Omicron and improving the indoor air quality when installed and applied with the correct dosage. Our Chikitssa UV-C air disinfection system is highly effective in the deactivation of viruses, bacteria, protozoa, fungi or other harmful microorganisms.
UV Air Disinfection in HVAC System
Filter Description:
- UV light is disinfect / kill the bacteria’s, viruses and molds.
- Pre-filter is filter the dust particles up to 3μm.
- HEPA (High-Efficiency Particulate Absorbing) Filter is filters the PM2.5 particles (2.5μm), dirt, dust, moisture, allergens, pollen, molds.
- Carbon Filter is filters the VOC (Volatile Organic Components), Formaldehyde, Paint Odours, gases, Smoke/Small.
UV-C Disinfection @ AHU Blower
UV-C Disinfection @ Duct
|
Model
|
Airflow
|
CFM
|
(Et)
|
UV
Lamp |
UV Intensity
|
UV Dose
|
ACH
|
ZPF-1
|
ZPF-2
|
Fan sound
|
|---|---|---|---|---|---|---|---|---|---|---|
|
|
mts/s
|
ft3/min
|
in secs.
|
Quantity
|
uW/cm2
|
J/s.m2
|
(X)
|
100 sq.ft
|
300 sq.ft
|
in Dba
|
|
Pendant & BASIC
|
1
|
`
14.9
|
0.93
|
2
|
30455.5
|
283.2
|
1X
|
100%
|
80%
|
45
|
|
Troffer Light
|
1
|
57.2
|
0.92
|
3
|
42160.0
|
387.9
|
3X
|
100%
|
90%
|
48
|
|
Wall Mount
|
1.2
|
102.9
|
0.79
|
4
|
55836.5
|
441.1
|
6X
|
100%
|
100%
|
52
|
|
Unitary System
|
1.5
|
399.4
|
0.66
|
4
|
55736.5
|
367.9
|
23X
|
100%
|
100%
|
60
|
Chikitssa UV-C Water Disinfection System / Water Purification System:
In India many diseases especially in children are caused by unclean water, water management is very poor in India & to overcome this details of water analyst’s source of water everything is studied and a package has to be conceptualized to suit every need like,
Kitchens in every Home, Complete water system, for the house, similarly multi-storeyed buildings, Hospitals, Clinics etc etc…….
Kindly give your specification which will enable us to conceptualize design & manufacture, to your specifications.
The general information needed for are,
|
Specifications
|
Water Disinfection / Water Purifier System
|
|---|---|
|
Material
|
ABS/Fiber Plastic
|
|
ON / OFF Control
|
Manual
|
|
Weight
|
5Kg
|
|
Type
|
Wall Mount
|
|
Color
|
White/Blue
|
|
Outer Dimensions
|
36x25.4x46cm
|
|
Filters Section
|
Micron Filter+UV-C + Granular Activated Carbone(GAC) Filter
|
|
Germicidal Lamps
|
1
|
|
Operating Voltage
|
220 - 240 VAC
|
|
Operating Power
|
10 Watts
|
|
Bulb Output
|
254nm UV-C Light, 8W
|
*Subject to terms and conditions.
At Horizon, we strive to make your life easier.
With the research performed by our engineers, we have deduced the precise timings required to thoroughly disinfect objects and items of varying shapes and sizes. Simply use any of our Chikitssa Surface disinfection products for the time specified below as per your requirement.
Now, there’s no need to second guess.
15 minutes
LARGE OBJECTS
10 minutes
MULTIPLE OBJECTS
5 minutes
MEDIUM OBJECTS
2 minutes
SMALL OBJECTS
*Research done in our in-house labs
*Product features and specifications are subject to change. Images are for representational purposes only. The actual look and colors may vary.
